Proscenium: 47’3” wide x arched 17’9” sides and 20’10” center high

Stage depth: Proscenium to back wall = 30’4”

Apron to back wall = 38’

Overall width of stage: 63’10”

Wing space: Stage right - 31’6” x 16’5”  &  Stage left - 31’6” x 12’5”

Size of orchestra pit: 15’11” depth in center, 12’2” depth at ends, 38’ wide up stage edge, 6’2” high

Height from floor to grid: 48’5”

Distance from pit lip to FOH: 38’

Distance from proscenium to spotlight booths: 106’

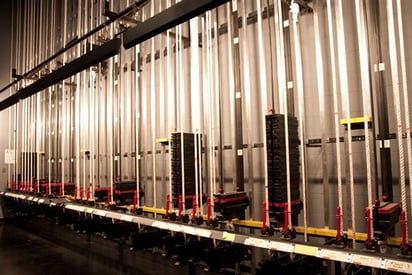

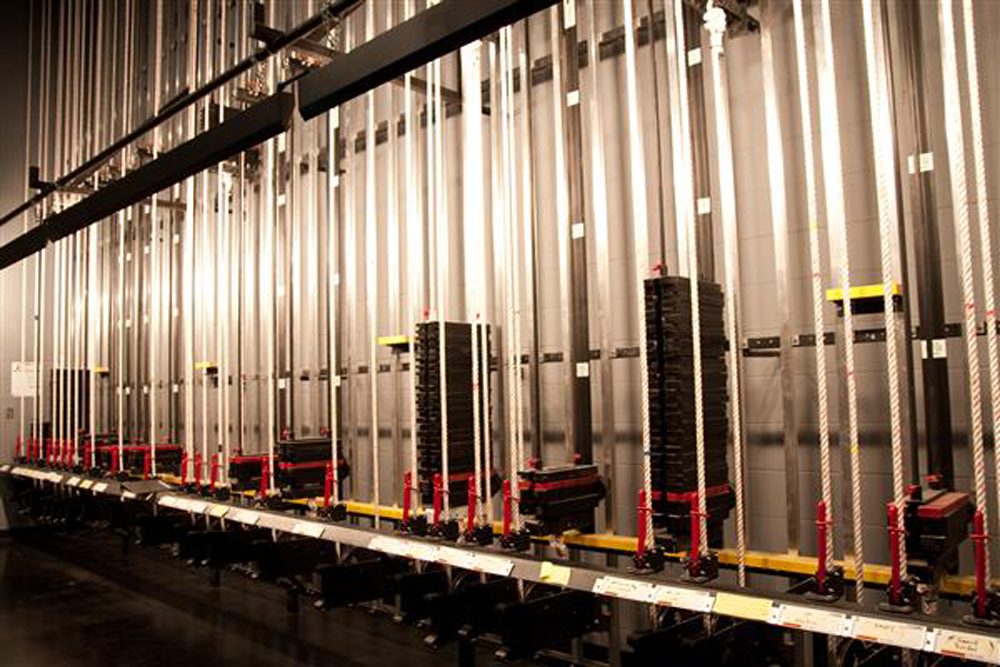

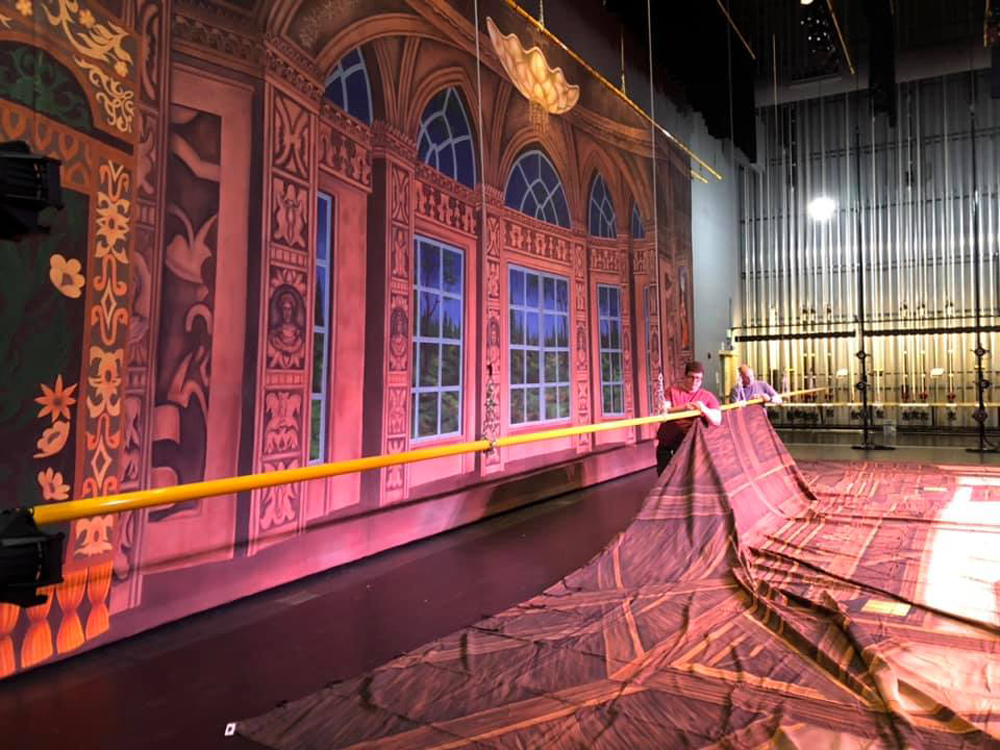

Counterweight System is located on Stage Left

25 lines on 8” centers, 12” between Grand Curtain and First Border

8’ Arbors

63’ Battens

Maximum Load per Batten = 1,200 lbs.

2 Conductor Podiums

140 Music Stands

61  Music Stand Lights

149  Musician’s Chairs

6  Stage Right FR-36 Choral Risers

12 4’x8’ Wenger Versalite Staging Platforms (8”, 16”, 24”, 32” legs)

17 4’x6’ Wenger Versalite Staging Platforms (8”, 16”, 24”, 32” legs)

1 Yamaha C6 Grand Piano

1 Harlequin Reversible Marley Dance Floor (Black and Gray)

Front of House

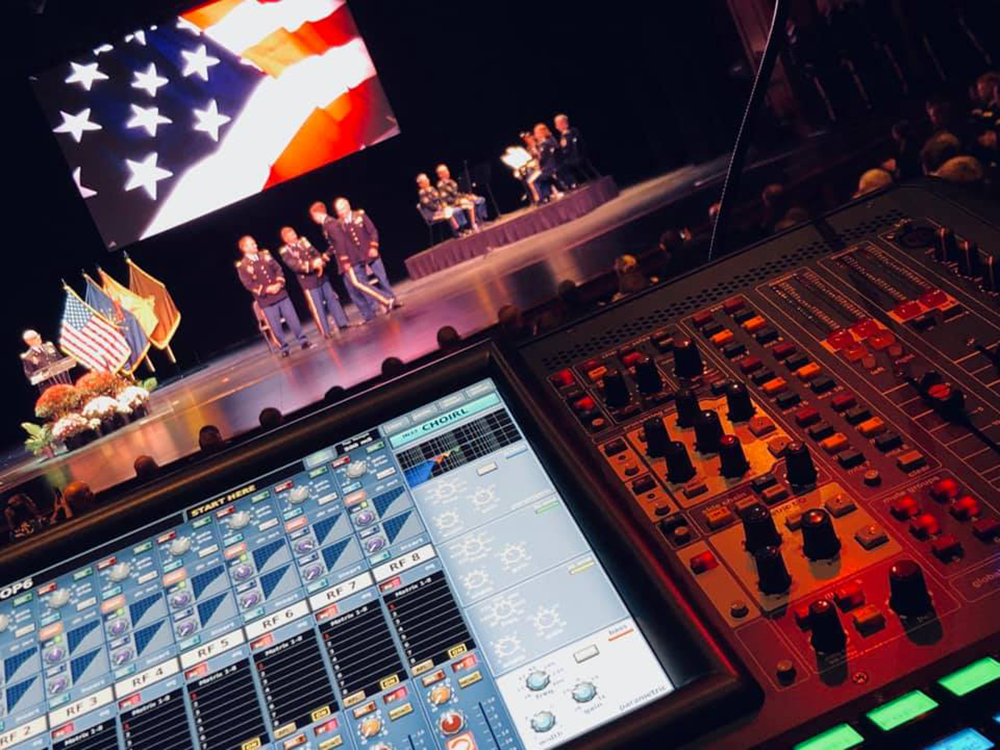

32 Channel Soundcraft MH4

3 Dual 31band Rane ME60 Equalizers

1 Marantz PMD351 CD/Cassette Combo Player

1 Tascam CD A500 CD/Cassette Combo Player

House Mains

L/R: Meyer M1D Line Array

Subs: Meyer M1D-SUB

Monitors

4 Community MVP38 stage monitors

2 Community MVP35 side fill monitors

Microphones

8 Shure Beta58A

8 Shure Beta57A

8 Audio-Technica Pro37

4 Audio-Technica AE3000

Beyerdynamic Drum Mic Kit

2 TG D57c

2 TG D58c

2 TG I53c

1 TG D70d

3 Audix MicroBoom with M1255B

8 Shure MX202WC

5 Shure MX391C Boundary Mic

16 Shure ULXS4  Receivers

8 Beta58A wireless handheld

16 ULX1 wireless bodypack

8 Shure WL93 lapel microphone

16-Countryman E6 (light beige) head-worn microphone

Miscellaneous

Dual channel Production Intercom system (Compatible with Clear-Com Brand)

RTS BTR-240 Wireless Intercom System

5 TR-240 Wireless Body Packs

ETC Express 48/96 control console with wireless remote focus

Dimmer Per Circuit

18 Circuits at FOH Position 1

18 Circuits at FOH Position 2

6 Circuits House Right Box Boom

6 Circuits House Left Box Boom

20 Circuits on Batten 4

20 Circuits on Batten 11

20 Circuits on Batten 16

20 Circuits on Batten 22

9 Circuits in floor pockets Stage Left

9 Circuits in floor pockets Stage Right

9 Circuits in floor pockets Up-Stage

Instruments

20 10 degree ETC Source 4

12 19 degree ETC Source 4

12 36 degree ETC Source 4

4 50 degree ETC Source 4

4 Source 4 Zoom

4 ETC Source 4 PAR

42- Altman 65Q Fresnel

76 PAR 64 (Black)

18 Blizzard Lighting ProPar Seven6 LED PARs

10 Chauvet Rogue R2 Wash

Spotlights

2 Lycian 1209, 575watt HMI

Miscellaneous

6 50lb. Iron Base Boom

Power Distribution

1 400amp 120/208  3-phase, located Downstage Right

Permanently installed rear projection screens and rooms left and right of the stage.

Displays and Projectors

 2 Mitsubishi XL5980LU Projector

90 Absen A7 LED Video Wall (NovaPro HD Processor)

Video

BlackMagic Design 2ME 4K Video Switcher

BlackMagic Design Hyper Deck

BlackMagic Design Hyper Deck Mini

BlackMagic Design Audio Monitor

BlackMagic Design Smart Scope Duo 4K

BlackMagic Design Smart View Video Monitor

Cameras

2 Panasonic AG-HPX370 Cameras

2 Marshall Monitors

2 Manfrotto Tripods

2 Fuji Lens Controls

Converters and Adapters

2 Decimator MD-HX Up/Down/Cross Converter

Media Server

Mac Pro running Renewed Vision ProPresentor 6

The loading dock near the stage is at ground level and is stage level. The stage entrance door is 10’ wide x 13’ high.

NOTE: There is an alternate dock location in the building, with a 48” dock that can accommodate two trucks.

One chorus room located behind the stage can accommodate 15 people. The room is equipped with make-up tables, mirrors, lights, chairs, toilets, and sinks. NOTE: There are other rooms available in this area that can be made into dressing rooms.
